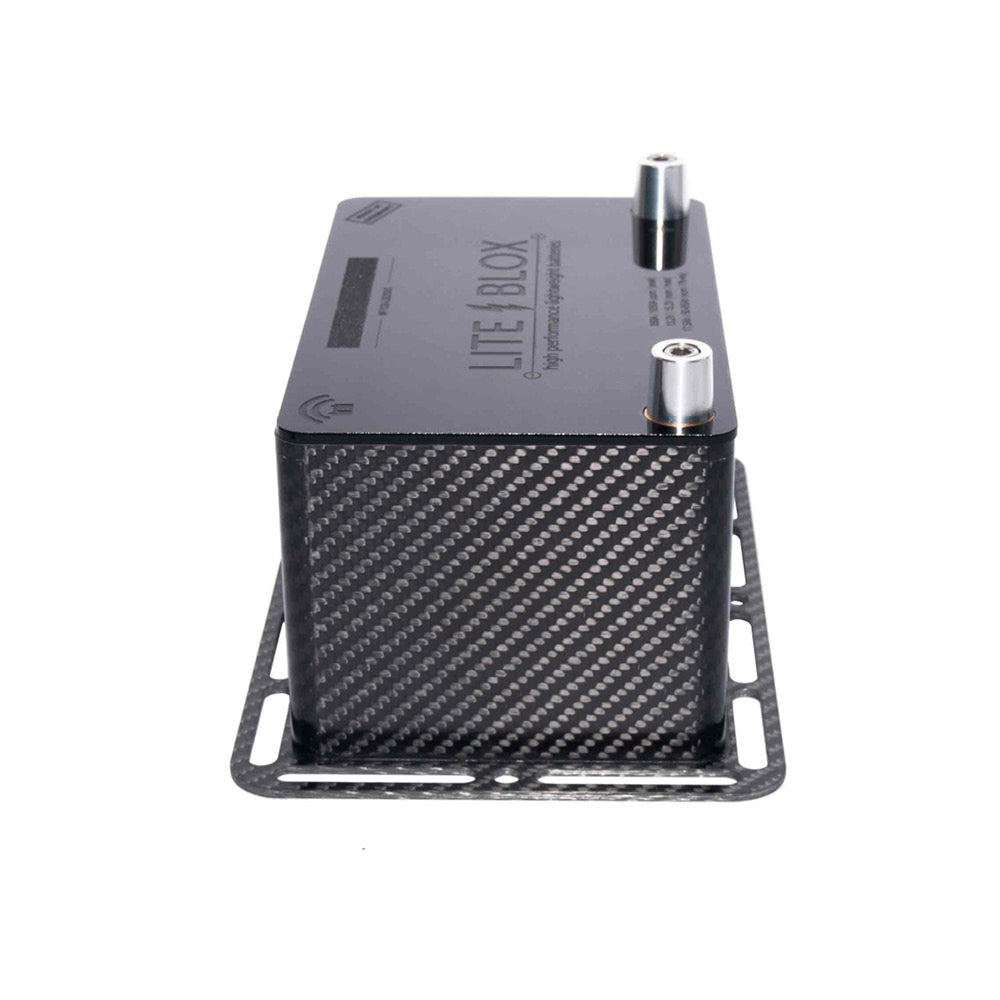

LITEBLOX LB28xx Lightweight Lithium Battery

Our flagship high performance starter battery LB28XX in a thermally & mechanically decoupled Carbon Fibre housing with implemented bracket, intelligent electronics with integrated, active kill-switch – engineered and built by hand in Germany.

features

• saves 17-22kg (38-48lbs) to a standard standard OEM starter battery with 55-75Ah capacity
• plug’n’play replacement – fit for almost any production car
• wireless interface for wireless data monitoring via Smartphone App
• maintenance-free due to intelligent BMS-System (over-/undervoltage, over-/undertemperatur, overcurrent & short ciruit)
• innovative & smart electronics for kill-switch via Smartphone App in two different programs:
  1.) I.K.O.S. – Intelligent Kill-Operation-Switch:
  effective disconnection of the LITE↯BLOX from the vehicle due to overload or via Smartphone (emergency or extended sitting periods), similar to the common FIA kill-off switch
  2.) A.V.A.T. – Active Vehicle Anti Theft:
  while all consumers are still being provided with energy, the LITE↯BLOX will instantly shut down at any theft attempt
• latest premium cell technology (A123 ANR26650M1B V3)
• rapid charging (optimal für Start-Stopp)
• marginally self-drain when not in use (sitting time >250days)
• fail safe due to innvative concept and premium materials
• tested in professional motorsport together with the FIA (Motorsport-UK registered 11/LI/19)
• engineered & handcrafted in Germany with a 5 year extended material guarantee

application

• 4-12 cylinder engines (2500-Xccm)***
• daily car use with minor restrictions (vehicle parking periods 4-6 weeks*)
• sportscar / supercar / hypercar / tracktool / motorsport (race track circuit / 24h race / endurance / dragracing / NASCAR / GT / DTM) / tuning / Car-Hifi / boats
• for the use in applications with intelligent battery management (IBS / IAC) including regenerative brake system (“KERS”) –> battery programming mandatory!
• for all vehicles from 2019 where the car battery can not be programmend to the ECU our special IBS-adapter is mandatory
• for vehicles of the BMW F-series (type M3 / M4), the OEM battery cable of the BMW M2 must be used (IBS 61219117877)

technical data

• weight: 28XXg / 6,2lbs** (32XXg incl. OEM-baseplate)
• dimensions: 202 x 123 x 100mm (l x b x h)
• voltage: 13,2V / 15,2V (nom / max)
• capacity: 17,5Ah / 55-75Ah (nom / Pb-eq)
• cranking current: 350A / 1050A* (cont / peak @RT)
• temperature: -20 to +80°C
• lifespan: lifespan: 3-5x compared to the OEM battery*
• connection: OEM clamp onto the battery poles (DIN) or via ring terminals (M6)
• certificates: product complies with directives 2001/95/EG, 2011/65/EU, 2006/66/EG, 2008/104/EU
• delivery scope: LITE↯BLOX + aluminium pole terminals + mounting material

Typical Applications

• AC Cobra
• Audi TTS TTRS RS3 RS4 RS5 RS6 R8

• Alfa Romeo Giulietta

• BMW E-Serie diesel / F-Serie 1M M2 M3 M4 M5 M6

• Chevrolet Camaro Corvette
• Dodge Charger / Challenger / Viper
• Ferrari 308 328 348 355 360 365 400 412 430 456 458 488 512 612 812 F12 F40 F50 Enzo

• Ford Mustang / GT40 GT

• Hyundai Genesis I30 I30N
• Honda NSX

• Jaguar F-Type XJR XKR

• Lamborghini Diabolo Gallardo Murcielago Huracan Aventador
• Lexus IS (F) ES LS RC SC

• Mercedes Benz E-Serie C-Serie CLA CLA45 AMG GTS

• Mini Cooper R56 R58 F56 F57 F58 F60 S JCW Works GP2 GP3

• Mosler MT900
• Nissan GT-R R35 Skyline

• Porsche 911 9X1 991 991.2 GT2 GT3 RS / Carrera GT
• Porsche 911 993 964 986 987 996 997 718 981 Cayman Boxster

• Spyker C8 C12
• Toyota Supra A90

• VW (7-8 VII-VIII) Golf  7.5 R Clubsport S / Multivan T4 T5 T6
